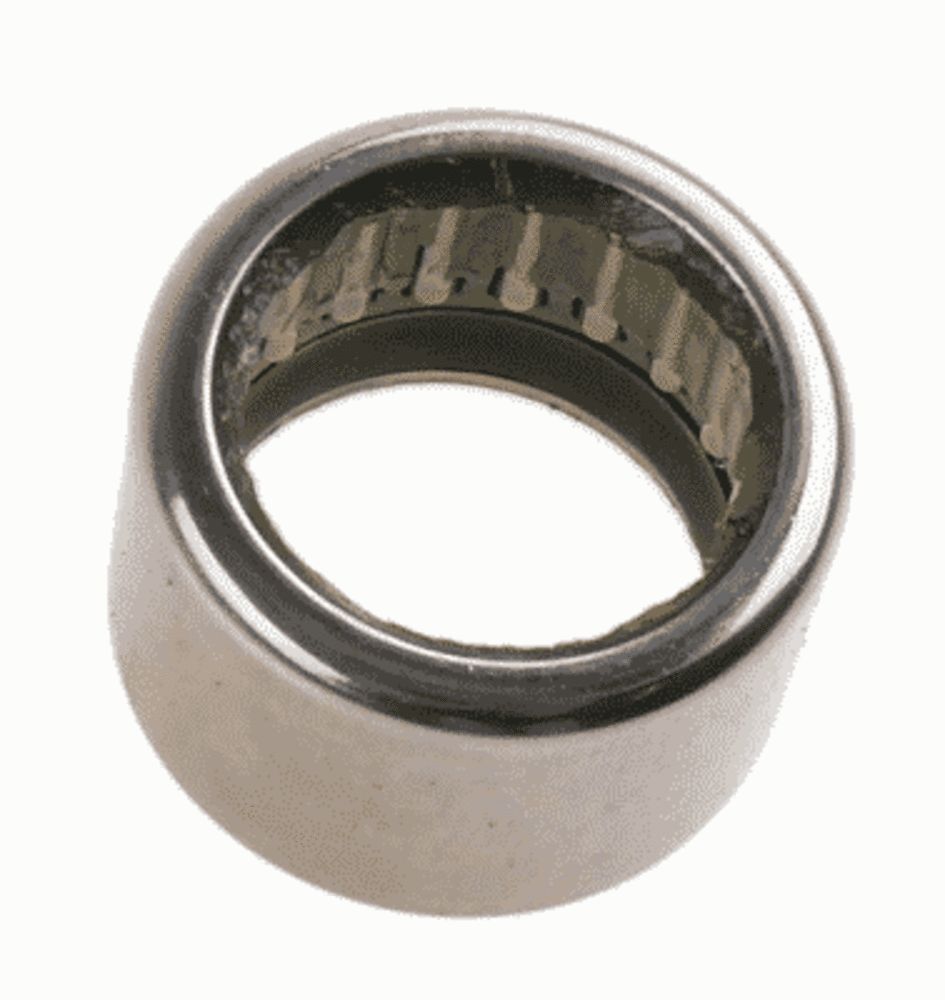

Sachs Pilot Bearing For VW 1863869012

Pilot Bearing, clutch

The pilot bearing, also referred to as the guide bearing, is predominantly responsible for the functioning of the clutch within a vehicle. As a ball bearing, it guides the transmission input shaft and is thus predominantly responsible for the functioning of the clutch. If wear results in an angular offset, the shaft is no longer properly supported which may lead to clutch defects.

• Guides the transmission input shaft
• Pilot bearing should always be inspected when replacing
• Available as either ball bearing or needle bearing

Diameter [mm]: 28
Outer diameter [mm]: 28
Inner diameter [mm]: 16
Width [mm]: 26
Bearing Type: Needle Bearing

Replaces following reference(s):
MERCEDES-BENZ: 0189812510
MERCEDES-BENZ: A0189812510
VW: 076105313
LuK: 410011710
SACHS: 021863869012
HAVAM: AT1871
INA: F214930
